Airpart Supply are an authorised distributor and stockist for Champion Aerospace Spark Plugs

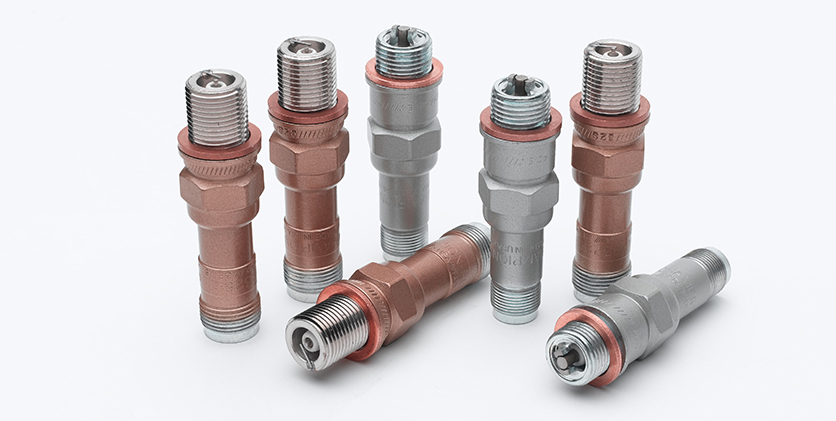

SPARK PLUGS



Champion Spark Plugs have been the first choice of aviation technicians (aircraft maintenance technicians/ aviation maintenance technicians) since the earliest days of aviation. When you ask a tech what spark plug they prefer and rely upon, they will most likely say Champion.

Advanced-engineered Champion Aerospace spark plugs are designed for the critical difference in performance, far beyond the ordinary. Champion spark plugs stand up to higher temperatures, pressures, and deposits.

Longer lasting than platinum spark plugs, Iridium “S” plugs resist lead attack and provide better scavenging than standard platinum plug designs. Iridium “S” offers exceptional performance, even under the most demanding conditions.

As the preferred supplier of spark plugs for general aviation aircraft, Champion Aerospace designs, engineers and manufactures piston-engine ignition components for both OEM and aftermarket applications. Every spark plug manufactured has built-in design advantages that assure longer life and greater reliability.

oil-filter-detail

FEATURES

  • Two layers of corrosion protection. Nickel plating and high temperature epoxy paint.
  • Fired glass seal provides positive retention of centre wire and prevents gas leakage.
  • Plated threads prevent seizing.
  • Nickel alloy electrodes provide excellent resistance to spark and heat erosion.
  • Fired in suppressor seal resistor prevents wear from voltage drain for prolonged plug life.
  • Ceramic insulator has excellent thermal properties to resist cracking.

 For pricing and availability click the relevant Champion Spark Plug part number in the table below:



Plug

Type

12 Pack

Shipping Wt.

Thread Size

Reach

Shielding

Thread

Standard

Electrode

Fine Wire

Electrode

Plug Gap

REJ38E

2 lb. - 13 oz.

1.276 kg

14mm

3/8”/0.95cm

5/8” - 24

Single



.018”-.023”/0.46-0.58mm

REL37B

2 lb. - 13 oz.

1.276 kg

14mm

1/2”/1.27cm

5/8” - 24

Twin

Electrode



.016”-.021”/0.41-0.53mm

REN30S

2 lbs. - 6 oz.

1.077 kg

14mm

3/4”/1.90cm

5/8” - 24

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

M41E

2 lbs. - 6 oz.

1.077 kg

18mm

1/2”/1.27cm

None

Two Prong



.016”-.021”/0.41-0.53mm

REM40E

REM38E

3 lbs. - 4 oz.

1.474 kg

18mm

1/2”/1.27cm

5/8” - 24

Two Prong



.016”-.021”/0.41-0.53mm

REM38S

3 lbs. - 4 oz.

1.474 kg

18mm

1/2”/1.27cm

5/8” - 24

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

REM37BY

3 lbs. - 4 oz.

1.474 kg

18mm

1/2”/1.27cm

5/8” - 24

Twin

Electrode



.016”-.021”/0.41-0.53mm

RHM40E

RHM38E

3 lbs. - 5 oz.

1.503 kg

18mm

1/2”/1.27cm

3/4” - 20

Two Prong



.016”-.021”/0.41-0.53mm

RHM38S

3 lbs. - 5. oz.

1.503 kg

18mm

1/2”/1.27cm

3/4” - 20

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

REB37E REB32E

3 lbs. - 4 oz.

1.474 kg

18mm

13/16”/2.06cm

5/8” - 24

Two Prong



.016”-.021”/0.41-0.53mm

RHB37E

RHB32E RHB29E





3 lbs. - 6 oz.

1.531 kg





18mm





13/16”/2.06cm





3/4” - 20





Two Prong







.016”-.021”/0.41-0.53mm

REB36S

3 lbs. - 4 oz.

1.474 kg

18mm

13/16”/2.06cm

5/8” - 24

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

RHB36S

RHB32S

3 lbs. - 6 oz.

1.531 kg

18mm

13/16”/2.06cm

3/4” - 20

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

RHU32S

3 lbs. - 6 oz.

1.531 kg

18mm

1-1/8”/2.85cm

3/4” - 20

Single

Fine Wire

Iridium

.016”-.021”/0.41-0.53mm

RHU32E

3 lbs. - 6 oz.

1.531 kg

18mm

1-1/8”/2.85cm

3/4” - 20

Two Prong



.016”-.021”/0.41-0.53mm

RVL38S

2 lbs. - 13 oz.

1.276kg

14 mm

1/2”/1.27cm

M18 x 1

Single

Finewire

Iridium

.016”-.021”/0.41-0.53mm



Click here for the Champion Aerospace Catalogue (this will open in a new window to allow you to use the search function on our website).

More information about Champion Spark Plugs can be found at the Champion Aerospace website https://www.championaerospace.com/products/spark-plugs
