Airpart Supply are an approved factory distributor and stockist for APS 'Black Steel' Brakes. Supplying and stocking their leading line of Brake Discs, Brake Linings and Brake Rivets.

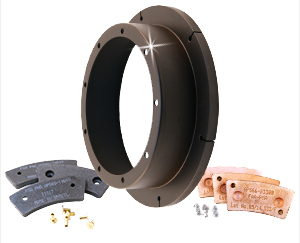

Why should you upgrade your existing brakes to APS "Black Steel"® discs and linings?

•     Less expensive by approximately 30%

•     Stronger due to the use of a premium quality Aerospace alloy steel one-piece forging

•     Corrosion resistant because of the “BlackSteel”® proprietary heat treatment process

•     Approximately 30% longer wear if paired with patented APS linings

•     Most applications in stock



Find the correct APS Brake Disc or Lining for your aircraft below:

Aircraft Model Year Serial No Wheel Assy Brake Disc PN Brake Assy Lining PN Linings Per Wheel Rivet PN
100-180 Lark      40-86A APS164-02000 30-56F APS66-10500 2 APS105-00200
Aerofab
LA-4 1963 and up   40-113X APS164-04000 30-75X APS66-10500 2 APS105-00200
LA-4     40-74 APS164-00700 30-51 APS66-10600 4 APS105-00200
LA4-180,200 Amphibian     40-113X APS164-04000 30-75X APS66-10500 2 APS105-00200
LA4-180,200 Amphibian 1974   40-74A APS164-04700 30-51 APS66-10600 4 APS105-00200
LA4-180,200 Amphibian 1975, 1977 and up   40-74B APS164-00700 30-51B APS66-10600 4 APS105-00200
LA-250 Renegade     40-418 APS164-24500 30-241 APS66-10500 4 APS105-00200
LA-270 Turbo Renegade     40-418 APS164-24500* 30-241 APS66-10500 4 APS105-00200
Aero Res
J-2     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
Aerostar Aircraft (Piper)
600, 601, 601P, PA-600A, 601B   171 and up 40-124 APS164-05006 30-88 APS66-02200 8 APS177-00300
PA-60, 601P, 700P 1975 and up   40-124 APS164-05006 30-88 APS66-02200 8 APS177-00300
AG CAT Productions Inc
G164 Ag-Cat   1-399 40-47 APS164-01100 30-32C APS66-10600 4 APS105-00200
G16A Super Ag-Cat   400 and up 40-101 APS164-03006 30-67 APS66-10800 4 APS105-00200
450, 600   1 and up 40-101 APS164-03006 30-67 APS66-10800 4 APS105-00200
G164B, G164C, G164D Turbine   1 and up 40-133 APS164-03006 30-84 APS66-10800 8 APS105-00200
Agusta
C22J     40-151 APS164-08500 30-133 APS66-10500 2 APS105-00200
C22J     40-151 APS164-08500 30-164 APS66-06200 2 APS177-00300
Agusta (Caproni Vizzola)
C22J     40-151 APS164-08500 30-133 APS66-10500 2 APS105-00200
Air Tractor
AT-300     40-101 APS164-03006 30-67X APS66-10800 4 APS105-00200
AT-301,302,302A,400A     40-101 APS164-03006 30-89 APS66-10800 6 APS105-00200
AT-400,402,501,502,503,503A     40-133 APS164-05806 30-98C APS66-10800 12 APS105-00200
AT-401,401A     40-234 APS164-05606 30-184 APS66-10800 8 APS105-00200
AT-602     40-403 APS164-22202 30-231 APS66-06600 12 APS177-00300
AT-802     40-279 APS164-23001 30-210 APS66-13100 16 APS105-06700
AT-802     40-279A APS164-23002 30-210A APS66-13100 16 APS105-06700
American Champion Aircraft
7ECA, 7GCAA, 7GCBC, 7KCAB, 7SRS 1964 and up   40-28D APS164-00500 30-19A APS66-10600 2 APS105-00200
7ACA Champ up to 1970   40-28D APS164-00500 30-19A APS66-10600 2 APS105-00200
7ACA Champ 1971 and up   40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
8GCBC Scout     40-47 APS164-01100 30-32B APS66-10600 4 APS105-00200
8KCAB Decathalon     40-28D APS164-00500 30-19A APS66-10600 2 APS105-00200
T-250 Aries     40-75G APS164-01501 30-52S APS66-10500 4 APS105-00200
Arctic Aircraft
S1B2 Arctic Tern   001–1021 40-28 APS164-00500 3018 APS66-10600 2 APS105-00200
S1B2 Arctic Tern   1022 and up 40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
Asta
N22B, N22S, N24A     40-75T APS164-08300 30-52Q APS66-10500 4 APS105-00200
N24A     40-143 APS164-08200 30-129 APS66-06200 4 APS177-00300
Aviat/Pitts/Christen
S-1,2 Pitts Special Series     40-78B APS164-01700 30-9 APS66-10600 4 APS105-00200
A-1 Husky     40-60 APS164-06700 30-60 APS66-10600 4 APS105-00200
Avions Pierre Robin
140, 160       APS164-03601 30-52T APS66-10500 4 APS105-00200
DR400 Series     40-97D APS164-02601 30-63E APS66-10500 2 APS105-00200
HR100/120, 200     N/A APS164-02601 30-63D APS66-10500 2 APS105-00200
HR100/120, 200     N/A N/A 30-63E APS66-10500 2 APS105-00200
HR100/200, 210     N/A APS164-03601 30-52N APS66-10500 4 APS105-00200
HR400 Series     N/A N/A 30-52T APS66-10500 4 APS105-00200
R1000 Series, R2000 Series, R3000 Series     N/A N/A 30-63E APS66-10500 2 APS105-00200
R2160     40-97A APS164-02601 30-63E APS66-10500 2 APS105-00200
Ayres
S2R-600 Thrush   1939–2173R 40-129 APS164-05606 30-94 APS66-10800 8 APS105-00200
S2R-600 Thrush   2174R–2529R 40-129 APS164-05606 30-94 APS66-10800 8 APS105-00200
S2R-600 Thrush     40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-600 Thrush   2530R and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-660 Turbo Thrush     40-403 APS164-22202 30-231 APS66-10800 12 APS177-01600
S2R-800 Thrush   5000R–5082R 40-129 APS164-05806 30-94 APS66-10800 8 APS105-00200
S2R-800 Thrush   5083R and up 40-133 APS164-05806 30-98 APS66-10800 12 APS105-00200
S2R-PZL600 Thrush   R35-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-R1340   R1340-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-R1820   R1820-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-R3S     40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T11   T11-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T15 Turbo Thrush   T15-001 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T15 Turbo Thrush   T15-002 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T34 Turbo Thrush   6000–6023 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T34 Turbo Thrush   6024 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T41 Turbo Thrush   T41-089–090 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T65 Turbo Thrush   T65-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
S2R-T65HG Turbo Thrush   T65HG-001 and up 40-133 APS164-05806 30-98D APS66-10800 12 APS105-00200
Bellanca
17-30A, 17-31A, 17-31ATC Viking 300A     40-75E APS164-01501 30-52M APS66-10500 4 APS105-00200
DW-1     40-101 APS164-03006 30-89A APS66-10800 6 APS105-00200
Britten-Norman Aircraft Ltd
BN-2,2A,2B,2T 1969–1979   40-90 APS164-02201 30-23A

APS66-06500

APS66-06200

2

2

APS177-00300
BN-2,2A,2B,2T 1979 and up   40-90B APS164-02201 30-23C

APS66-06500

APS66-06200

2

2

APS177-00300
BN-2 Series All   40-90F APS164-01506 30-23D

APS66-06500

APS66-06200

2

2

APS177-00300
BN-2A Mk111, Mk111-2,3     40-98F APS164-02706 30-66D APS66-02200 4 APS177-00300
Defender 4000     40-128E **164-23300 30-93E APS66-04400 6 APS177-00300
Burkhart Grob
G103, G103C Twin III Sailplane     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
G109 Series Power Glider     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
Cessna
120, 140, 140A     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
150A,B 1961–1962 150-59119–59700 40-12 APS164-00400 30-9 APS66-10600 2 APS105-00200
150C 1963   40-19 APS164-00400 30-9 APS66-10600 2 APS105-00200
150C     40-57 APS164-00500 30-40 APS66-10600 2 APS105-00200
150D,E 1964–1965   40-79A APS164-01600 30-40 APS66-10600 2 APS105-00200
150F,G; F150F,G 1966–1967   40-97 APS164-02601 30-63 APS66-10500 2 APS105-00200
150H,J,K; F150H,J 1968–1970   40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
A150K 1970   40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
150L 1971 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
A150L 1971 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
F150K 1970 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
FA150K,L 1970–1971   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
FRA150L 1972 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
152 Series 1978 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
A152 Series 1978 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
F152, FA152 Series 1978 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
150, 152, A150 1971–1973   D-30063 N/A C-30018 APS66-10900 2 APS105-00200
F150, F152 1973–1976   D-30260 APS164-30195 C-30018 APS66-10900 2 APS105-00200
FA152 1976   D-30580 APS164-30195 C-30018-4 APS66-10900 2 APS105-00200
FA152 1976-1977   D-30291-6 APS164-30440 C-30018-4 APS66-10900 2 APS105-00200
FA152 1977   D-30600-1 N/A C-30018-5 APS66-10900 2 APS105-00200
FA152 1978 and up   D-30600-1 APS164-30615-4 C-30764-5 APS66-10900 2 APS105-00200
172, 172A,B,C Skyhawk   172-46421–49544 40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
172D 1963 172-49545–50572 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
172E–M 1964–1974 172-50573–63458 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
172F 1965 172-51823–52808 40-97A APS164-02601 30-56 APS66-10500 2 APS105-00200
172F–H 1965–1967 172-52809–56512 40-97A APS164-02601 30-63 APS66-10500 2 APS105-00200
172I,K 1968–1970 172-56513–59223 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
172L–S 1971 and up 172-59224 and up 40-113 APS164-04000 30-75A APS66-10500 2 APS105-00200
F172F,G 1965–1966 F172-0096–0204 40-97A APS164-02601 30-56 APS66-10500 2 APS105-00200
F172G,H 1966–1970 F172-0205–00754 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
F172K 1971 and up F172-00755 and up 40-113 APS164-04000 30-75A APS66-10500 2 APS105-00200
F172RG   172RG0001 and up 40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
172, R172 1971–1973   D-30063 N/A C-30018-2 APS66-10900 2 APS105-00200
F172, FR172 1973–1976   D-30260 APS164-30195 C-30018-2 APS66-10900 2 APS105-00200
F172, FR172 1976   D-30580 APS164-30195 C-30018-2 APS66-10900 2 APS105-00200
F172, FR172 1977   D-30600-1 N/A C-30018-6 APS66-10900 2 APS105-00200
F172, FR172 1978–1981   D-30600-1 APS164-30615-4 C-30018-6 APS66-10900 2 APS105-00200
F172, FR172 1982 and up   D-30600-1 APS164-30615-4 C-30764-6 APS66-10900 2 APS105-00200
172RG Cutlass 1978–1981   D-30600-1 APS164-30615-4 C-30018-6 APS66-10900 2 APS105-00200
172RG Cutlass 1982 and up   D-30600-1 APS164-30615-4 C-30764-6 APS66-10900 2 APS105-00200
175 Skylark 1959–1962 172-55876–57119 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
177A,B 1969–1970 177-01165–01530 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
177A,B 1969–1970 177-01531 and up 40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
177, 177RG, F177RG 1971 and up   40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
177, 177RG, F177RG 1975   D-30580 APS164-30195 C-30018-4 APS66-10900 2 APS105-00200
177, 177RG, F177RG 1976   D-30291-6 APS164-30440 C-30018-4 APS66-10900 2 APS105-00200
177, 177RG, F177RG 1977   D-30660-1 N/A C-30018-5 APS66-10900 2 APS105-00200
177, 177RG, F177RG 1978   D-30660-1 APS164-30615-4 N/A N/A N/A APS105-00200
180G 1964 and up 180-51313 and up 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
180H 1967–1968 180-51775–51993 40-66 APS164-00700 30-21 APS66-10600 4 APS105-00200
180H 1969–1971 180-52011–52195 40-75D APS164-03601 30-52D APS66-10500 4 APS105-00200
180H 1971 and up 180-52196 and up 40-75D APS164-03601 30-52N APS66-10500 4 APS105-00200
180 Series 1973–1974   D-30063-1 N/A D-30118- APS66-10900 2 APS105-00200
180 Series 1974   D-30291-3 APS164-30414 D-30118-5 APS66-10900 4 APS105-00200
180 Series 1974–1978   D-30291-1 APS164-30388 D-30118-5 APS66-10900 4 APS105-00200
180 Series 1978 and up   D-30660-2 APS164-30615-2 D-30118-5 APS66-10900 4 APS105-00200
182B–E 1959–1962 182-51886–54423 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
182E,F 1962–1963 182-53599–55058 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
182G–N 1964–1970 182-55059–60445 40-97A APS164-02601 30-56A APS66-10500 2 APS105-00200
182N 1971 and up 182-60446–67715 40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
182S,T; T182T 1996 and up   40-75B APS164-01501 30-52U APS66-10500 4 APS105-00200
182, F182 1976   D-30291-6 APS164-30440 C-30018-4 APS66-10900 2 APS105-00200
182, F182 1977   D-30600-1 N/A C-30018-5 APS66-10900 2 APS105-00200
182, F182 1978–1980   D-30600-1 APS164-30615-4 C-30018-5 APS66-10900 2 APS105-00200
T182 1981 and up   D-30660-3 APS164-30615-3 C-30018-3 APS66-10900 4 APS105-00200
R182, TR182, FR182 1978 and up   D-30660-3 APS164-30615-3 C-30018-3 APS66-10900 4 APS105-00200
185, 185A 1961–1962 185-0001–0512 40-32 APS164-00700 30-21 APS66-10600 4 APS105-00200
185B 1963 185-0513–0653 40-66 APS164-00700 30-21 APS66-10600 4 APS105-00200
185C–E 1964–1966 185-0654–1095 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
A185E,F 1966 and up 185-1096 and up 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
A185E,F 1969 and up 185-1471 and up 40-75D APS164-03601 30-52D APS66-10500 4 APS105-00200
A185E 1967–1968 185-1150–1470 40-66 APS164-00700 30-21 APS66-10600 4 APS105-00200
185 Series 1973–1974   D-30291-3 APS164-30414 D-30018-5 APS66-10900 4 APS105-00200
185 Series 1974–1978   D-30291-1 APS164-30388 D-30018-5 APS66-10900 4 APS105-00200
185 Series 1978 and up   D-30660-2 APS164-30615-2 D-30018-5 APS66-10900 4 APS105-00200
188, 188A, 188B, A188, A188A 1966–1972   40-75B APS164-01501 30-52B APS66-10500 4 APS105-00200
188, 188A, 188B, A188, A188A 1966–1972   40-101A APS164-03106 30-67A APS66-10800 4 APS105-00200
A188B, T188C 1973 and up   40-101 APS164-03006 30-67A APS66-10800 4 APS105-00200
A188B, T188C 1973 and up   40-98A APS164-02707 30-66A APS66-11000 4 APS105-00200
205 1963 205-001–0480 40-67 APS164-00700 30-35 APS66-10600 4 APS105-00200
205A 1964 205-0481–0577 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
206 1964 206-0001–0275 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
U206 1965–1969 U206-0276–1256     40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
U206 1969 and up U206-1257 and up 40-75D APS164-03601 30-52N APS66-10500 4 APS105-00200
P206 1965–1969 P206-001–0566 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
P206 1969 and up P206-0567 and up 40-75D APS164-03601 30-52N APS66-10500 4 APS105-00200
206 Series 1974–1978   D-30291-2 APS164-30398 D-30018-4 APS66-10900 4 APS105-00200
206 Series 1978 and up   D-30660-3 APS164-30615-3 D-30018-4 APS66-10900 4 APS105-00200
206 Series 1974–1978   D-30291-1 APS164-30388 D-30018-6 APS66-10900 4 APS105-00200
206 Series 1978 and up   D-30660-2 APS164-30615-2 D-30018-6 APS66-10900 4 APS105-00200
206H, T206H 1996 and up   40-75B APS164-01501 30-52U APS66-10500 4 APS105-00200
207 Series 1969 and up 207-00001 and up 40-75B APS164-01501 30-52F APS66-10500 4 APS105-00200
207 Series 1969 and up 207-00001 and up 40-75D APS164-03601 30-52E APS66-10500 4 APS105-00200
208 Caravan 1   1–138 40-179 APS164-22201 30-163 APS66-03300 8 APS177-00300
208 Caravan 1   139 and up 40-179 APS164-22201 30-182 APS66-03300 8 APS177-00300
208 Caravan 1   139 and up 40-179 APS164-22201 30-182 APS66-15300** 8 APS177-00300
208 Caravan 1   139 and up 40-179 APS164-22201 30-182A APS66-15300** 8 APS177-00300
208B   1–53 40-179 APS164-22201 30-163 APS66-03300 8 APS177-00300
208B   54 and up 40-179 APS164-22201 30-182 APS66-03300 8 APS177-00300
208B   54 and up 40-179 APS164-22201 30-182 APS66-15300** 8 APS177-00300
208B   54 and up 40-179 APS164-22201 30-182A APS66-15300** 8 APS177-00300
210C 1963 210-58086–58220 40-21 APS164-00900 30-45 APS66-11100 2 APS105-00200
210D–M 1964–1978 210-58221–62954 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
T210F 1966 and up T210-0001 and up 40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
P210 1984   40-142 APS164-07800 30-127C APS66-06200 4 APS177-00300
210N 1979 and up 210-62955 and up 40-75B APS164-01501 30-52V APS66-10500 4 APS105-00200
P210N 1979 and up   40-75B APS164-01501 30-52V APS66-10500 4 APS105-00200
210 Series 1974–1978   D-30291-2 APS164-30398 D-30018-4 APS66-10900 4 APS105-00200
210 Series 1978 and up   D-30660-3 APS164-30615-3 D-30018-4 APS66-10900 4 APS105-00200
303, T303 1982 and up   40-142 APS164-07800 30-127C APS66-06200 4 APS177-00300
303, T303     40-98H APS164-08406 30-66F APS66-04400 4 APS177-00300
305A–F 1951 and up   40-97E APS164-02601 30-63K APS66-10500 2 APS105-00200
305A–F 1951 and up   40-75F APS164-01501 30-52L APS66-10500 4 APS105-00200
310 Series 1976–1981   40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
310 Series 1981 and up   40-40D APS164-20206 30-28B APS66-03300 6 APS177-00400
335 1979 and up   40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
336 1964 336-0001–0098 40-67 APS164-00700 30-35 APS66-10600 4 APS105-00200
336 1964 336-0099 and up 40-75B APS164-01501 30-52 APS66-10600 4 APS105-00200
337, 337A 1965–1966 337-0001–0525 40-96A APS164-02504 30-61 APS66-10500 4 APS105-00200
337B 1967 337-0526–0619 40-96A APS164-02504 30-61A **66-03600 N/A APS105-00200
337B–D 1967–1969 337-0620–1193 40-96A APS164-02504 30-61D APS66-10500 4 APS105-00200
337E 1970 and up 337-01194 and up 40-98A APS164-02707 30-69B APS66-02200 4 APS177-00300
340 Series 1972–1981   40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
340 Series 1981 and up   40-40D APS164-20206 30-28B APS66-03300 6 APS177-00400
401 Series All   40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
402 Series All   40-135 APS164-06406 30-100 APS66-06600 8 APS177-01600
402 Series 1981 and up   40-135A APS164-20306 30-100 APS66-06600 8 APS177-01600
404 Titan 1976 and up 404-00001 and up 40-132 APS164-09100 30-97 APS66-06400 8 APS177-01600
411, 411A 1965–1968   40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
414 Chancellor     40-40A APS164-00806 30-28B APS66-03300 6 APS177-00400
414A     40-135 APS164-06406 30-100 APS66-06600 8 APS177-01600
414A 1981 and up   40-135A APS164-20306 30-100 APS66-06600 8 APS177-01600
414 Series 1976–1977   N/A N/A N/A N/A N/A APS177-01600
421C 1976–1980   40-135 APS164-06406 30-100 APS66-06600 8 APS177-01600
421C 1981 and up   40-135A APS164-20306 30-100 APS66-06600 8 APS177-01600
425   425-0001 and up 40-138 APS164-05500 30-113 APS66-06400 8 APS177-01600
425   425-0001 and up 40-138A APS164-05500 30-113A APS66-06400 8 APS177-01600
Cirrus Design Group
SR-20   1601 and up1 40-75P APS164-01501 30-52AB APS66-10500 4 APS105-00200
SR-22   1740 and up2 40-406 APS164-02504 30-233B APS66-06200 4 APS177-00300
1 Serial numbers 1600 and under upgrade to 40-75P/30-52AB per Cirrus Service Bulletin SBX-32-13
2 Serial numbers 1739 and under upgrade to 40-406/30-233B per Cirrus Service Bulletin SBX-32-13
Classic Aircraft
YM F-5 Waco   F5001 and up 40-223 APS164-03106 30-176 APS66-10800 4 APS105-00200
Columbia Aircraft
300   All 40-406A APS164-02504 30-233A APS66-06200 4 APS177-00300
350, 400   All 40-406A APS164-02504 30-233A APS66-06200 4 APS177-00300
Daimler Benz/M.B.B.
B.O.208     40-12 APS164-04000 30-9 APS66-10600 2 APS105-00200
B.O.209 Monsun     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
De Haviland
DHC1     40-97D APS164-02601 30-63P APS66-10500 2 APS105-00200
DHC2 MK.1,2,3     40-134 N/A 30-99 APS66-06600 8 APS177-01600
Diamond Aircraft
DA20 Katana     40-78E APS164-24200 30-9D APS66-10600 2 APS105-00200
DA40     40-14A APS164-24400 30-239 APS66-14100 2 APS105-00200
DA42 Twin Star     40-75Z APS164-01501 30-52Z APS66-10500 4 APS105-00200
Eagle Aircraft
220,300 Eagle   1 and up 40-101 APS164-03006 30-89A APS66-10800 6 APS105-00200
Ector Aircraft
L-19, Mountaineer, Super Mountaineer     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
Emair AG Aircraft
MA-1B Diablo 1200 1978 and up   40-139 **164-07306 30-111 APS66-10800 8 APS105-00200
Embraer
EM-312 (T-27) Tucano     40-130 APS164-07906 30-95B APS66-06600 8 APS177-01600
FFA Flugzeugwerke Altnerhein AG
AS202-18A4 Bravo   224 and up 40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
Found Brothers
100 Centennial     40-75B APS164-01501 30-52 APS66-10500 4 APS105-00200
GAF Australia
N22, N22B, N22S, N24     40-75T APS164-08300 30-52Q APS66-10500 4 APS105-00200
N24A Searchmaster     40-143 APS164-08200 30-129 APS66-06200 4 APS177-00300
DA42 Twin Star     40-75Z APS164-01501 30-52Z APS66-10500 4 APS105-00200
General Aviation - Italy
F.20 Pegaso, F.20TP Condor     40-75G APS164-01501 30-52P APS66-10500 4 APS105-00200
F.22 Pinguino     40-151 APS164-08500 30-164 APS66-06200 2 APS177-00300
F.1300 Jet Squalus     40-131 APS164-05700 30-96 APS66-06200 8 APS177-00300
Gippsland
GA8   All 40-75T APS164-08300 30-52N APS66-10500 4 APS105-00200
Great Lakes
2T-1A, 2T-1A-1, 2     40-113 APS164-04000 30-75 APS66-10500 2 APS105-00200
Grob
G103, G103C     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
G109 Series     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
G115, G115-B, C     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
G115-T, TA     40-84 APS164-01900 30-41B APS66-10600 4 APS105-00200
Grumman American
112, 112A,B   1–495 40-113A APS164-04300 30-79 APS66-10500 2 APS105-00200
112, 112A,B   500 and up 40-75H APS164-01501 30-52H APS66-10500 4 APS105-00200
112TC,TCA; 114, 114B   13000 and up 40-75H APS164-01501 30-52H APS66-10500 4 APS105-00200
AA-1,A,B; TR-2 up to 1974   40-86A APS164-02000 30-55B APS66-10500 2 APS105-00200
AA-1,A,B; TR-2 1975 and up   40-88C APS164-02000 30-56B APS66-10500 2 APS105-00200
AA-5 Traveler up to 1974   40-86A APS164-02000 30-55B APS66-10500 2 APS105-00200
AA-5A,5B 1975 and up   40-88C APS164-02000 30-56B APS66-10500 2 APS105-00200
GA-7 Cougar     40-90 APS164-02201 30-23B

APS66-06500

APS66-06200

2

2

APS177-00300
Gulfstream Aerospace
700     40-128C APS164-05006 30-93A APS66-02200 6 APS177-00300
Hawker Beechcraft
23, 24 1971 and up   40-113C APS164-04300 30-79A APS66-10500 2 APS105-00200
B19, A23, C23, 24R 1974 - 1977   40-113C APS164-04300 30-75B APS66-10500 2 APS105-00200
B19, A23, C23, 24R 1978 and up   40-59 APS164-06900 30-59 APS66-11200 2 APS105-00200
33, A33, B33   CD1–CD387 40-1 APS164-00900 30-1 APS66-11100 2 APS105-00200
33, A33, B33   CD388–CD639 40-37 APS164-00700 30-24 APS66-10600 4 APS105-00200
F33A,C; G33, V35BTC, 36   CD1272–CD1304 40-83 APS164-02504 30-54 APS66-10500 4 APS105-00200
F33A,C; G33, V35BTC, 36   CE301–CD634 40-83 APS164-02504 30-54 APS66-10500 4 APS105-00200
F33A,C; G33, V35BTC, 36   D9862 and up 40-83 APS164-02504 30-54A APS66-10500 4 APS105-00200
F33A,C; G33, V35BTC, 36   E1–E824 40-83 APS164-02504 30-54 APS66-10500 4 APS105-00200
F33A,C   CE635–CE1071 40-83A APS164-02505 30-54A APS66-10500 4 APS105-00200
F33A,C   CE1072 and up 40-83A APS164-02505 30-54C APS66-10500 4 APS105-00200
F33A,C   CJ125–CJ155 40-83A APS164-02505 30-54C APS66-10500 4 APS105-00200
F33A,C   EA443 and up 40-83A APS164-02505 30-54C APS66-10500 4 APS105-00200
G36     40-83B APS164-02505 30-57 APS66-10500 N/A APS105-00200
A36, A36TC   E825–E1802 40-83A APS164-02505 30-54 APS66-10500 4 APS105-00200
A36, A36TC   E1803–E2254 40-83B APS164-02505 30-54A APS66-10500 4 APS105-00200
A36, A36TC   EA1–EA186 40-83A APS164-02505 30-54A APS66-10500 4 APS105-00200
A36, A36TC   EA187–EA442 40-83B APS164-02505 30-54A APS66-10500 4 APS105-00200
A36, B36TC   E2255 and up 40-83B APS164-02505 30-54C APS66-10500 4 APS105-00200
A36, B36TC   EA443 and up 40-83B APS164-02505 30-54C APS66-10500 4 APS105-00200
B55, E55, 58 1978   40-128 APS164-06106 30-93B APS66-04400 6 APS177-00300
B55, E55, 58 1979 and up   40-98G APS164-02706 30-66G APS66-09700 4 APS177-00300
B55, E55, 58 All Heavy Duty Option 40-128D APS164-06106 30-93C APS66-09700 6 APS177-00300
C55   TE1 and up 40-98 APS164-02706 30-66 APS66-04400 4 APS177-00300
D55   TE452 and up 40-98 APS164-02706 30-66 APS66-04400 4 APS177-00300
E55   TE768 and up 40-98 APS164-02706 30-66 APS66-04400 4 APS177-00300
56TC   TG1 - TG83 40-98 APS164-02706 30-69A APS66-02200 4 APS177-00300
A56T   TG84 and up 40-98 APS164-02706 30-69A APS66-02200 4 APS177-00300
58   TH1 and up 40-98 APS164-02706 30-66 APS66-04400 4 APS177-00300
58P, 58TC 1984 and up   40-171 APS164-20806 30-145 APS66-09700 6 APS177-00300
B60 1984 and up   40-171 APS164-20806 30-145 APS66-09700 6 APS177-00300
76     40-83 APS164-02504 30-54B APS66-10500 4 APS105-00200
77     40-59 APS164-06900 30-59D APS66-11200 2 APS105-00200
F90, 99, 99A, A99A, B99, C99, 100, A100, B100, 200, 200C,CT,T;A200, A200C,CT; B200, B200C,CT,T     40-289 APS164-21000 30-146

APS66-09100

APS66-09200

2

2

N/A
Helio
H-250, 295, 391, 395 Courier     4075E APS164-01501 30-52A APS66-10500 4 APS105-00200
H-250, 295, 391, 395 Courier     40-75D APS164-03601 30-52N APS66-10500 4 APS105-00200
H-250, 295, 391, 395 Courier     40-75T APS164-08300 30-52N APS66-10500 4 APS105-00200
H-250, 295, 391, 395 Courier     40-98A APS164-02707 30-66A APS66-10500 4 APS105-00200
112TC,TCA; 114, 114B   13000 and up 40-75H APS164-01501 30-52H APS66-10500 4 APS105-00200
AA-1,A,B; TR-2 up to 1974   40-86A APS164-02000 30-55B APS66-10500 2 APS105-00200
AA-1,A,B; TR-2 1975 and up   40-88C APS164-02000 30-56B APS66-10500 2 APS105-00200
AA-5 Traveler up to 1974   40-86A APS164-02000 30-55B APS66-10500 2 APS105-00200
AA-5A,5B 1975 and up   40-88C APS164-02000 30-56B APS66-10500 2 APS105-00200
Hunting Firecracker Aircraft
NDN1T Turbo Firecraker     40-120C APS164-21600 30-83A APS66-06200 4 APS177-00300
Industria Unidas SA (Mexico)
A-98 Sparrow, Quail     40-99 APS164-02800 30-41 APS66-10600 4 APS105-00200
Lancair Company
300 Columbia     40-406A APS164-02504 30-233A APS66-06200 4 APS177-00300
Laviasa
PA-25 Pawnee   25-1 - 25-1999 3070 **159-00100 30-12 APS66-10600 4 APS105-00200
PA-25-235,235B   25-2000 – 25-4171 40-61 APS164-01300 N/A APS66-10600 4 APS105-00200
PA-25-235D, PA-25-260C,D   25-4172 and up 40-84A APS164-03300 30-41B APS66-10600 4 APS105-00200
Lovaux
EA7 Optica   1 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
Marsh Aviation
S2R-T Turbo Thrush     40-129 APS164-05606 30-94 APS66-10800 8 APS105-00200
S2R-T Turbo Thrush     40-133 APS164-05806 30-94 APS66-10800 8 APS105-00200
G-164C-T Turbo Cat     40-133 APS164-05806 30-84 APS66-10800 8 APS105-00200
Maule Air
M4 Series     40-97D APS164-02601 30-63E APS66-10500 2 APS105-00200
M5 Series, M6 Series     40-97D APS164-02601 30-63E APS66-10500 2 APS105-00200
M7 Series     40-75D APS164-03601 30-52N APS66-10500 4 APS105-00200
M9 Series     40-75D APS164-03601 30-52AA APS66-10500 4 APS105-00200
McCulloch
J-2 Helicopter     40-78B APS164-01700 30-9 APS66-10600 2 APS105-0000
Mooney
M10 Cadet   690001 and up 40-97 APS164-02601 30-63 APS66-10500 2 APS105-00200
M20A,B; Mark 20   1401–3466 40-24 APS164-00900 30-5 APS66-11100 2 APS105-00200
M20C   670001 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20C, D   101–260 40-24 APS164-00900 30-5 APS66-11100 2 APS105-00200
M20E   101–1308 40-24 APS164-00900 30-5 APS66-11100 2 APS105-00200
M20E   670001 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20F   660003 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20G   680001 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20J   24-001 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20K   25-001 and up 40-86 APS164-02000 30-56A APS66-10500 2 APS105-00200
M20M   All 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
NDN Aircraft
NDN6 Fieldmaster     40-175 **164-21100 30-149 APS66-06600 12 APS177-01600
Pacific Aerospace
FU24-950,954; FU24A-954 1978 and up   40-47 APS164-01100 30-32C APS66-10600 4 APS105-00200
08-600 Cresco     40-101 APS164-03006 30-89 APS66-10800 6 APS105-00200
Partenavia
P.64B, P.66B 1970 and up   40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
P.66C-160, P.66T     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
P.68, P.68B, P.68C, P.68C-TC     40-96E APS164-02504 30-61E APS66-10500 4 APS105-00200
P.68, P.68B, P.68C, P.68C-TC     40-142 APS164-07800 30-127 APS66-06200 4 APS177-00300
Series 300     40-163 APS164-20500 30-139 APS66-06200 8 APS177-00300
Piper
PA-18-150, PA-18A-150   18-7609137 and up 40-60 APS164-06700 30-60 APS66-10600 4 APS105-00200
PA-22-108 Colt     40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
PA-23-150,160     40-3 **159-00200 30-13 APS66-10600 4 APS105-00200
PA-23-235   27-1 – 3737 40-4 APS164-00206 30-8 APS66-10600 8 APS105-00200
PA-23-250   27-3738–7554 40-116 APS164-03206 30-72 APS66-06500 8 APS177-00300
PA-23-250   27-7554138 40-131 APS164-05700 30-96 APS66-06200 8 APS177-00300
PA-24-180,250,260   24-1–3306 40-5 **159-00100 30-12 APS66-10600 4 APS105-00200
PA-24-180,250,260   24-3307 and up 40-58 APS164-00900 30-41 APS66-10600 4 APS105-00200
PA-24-180,250,260     40-84 APS164-01900 30-41B APS66-10600 4 APS105-00200
PA-24-400   24-130 and up 40-90 APS164-02201 30-23

APS66-06500

APS66-06200

2

2

APS177-00300
PA-28-140 Cherokee/Cruiser   28-20002–20520 40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
PA-28-140 Cherokee/Cruiser   28-20521 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-150 Cherokee   28-1–1760 40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
PA-28-160   28-1761 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-151 Cherokee/Warrior     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-161 Cherokee/Warrior II     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-180 Cherokee/Archer   28-1–1760 40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
PA-28-180 Cherokee/Archer   28-1761 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-181 Cherokee/Archer II     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-235 Cherokee/Pathfinder   28-10003–28-10486 40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
PA-28-235 Cherokee/Pathfinder   28-10487 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-236 Dakota   28-7911001 and up 40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-236 Dakota   28-8111001 and up 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-28R-180   28R-30005–1730005 40-84 APS164-01900 30-41 APS66-10600 4 APS105-00200
PA-28R-180   28R-7130006 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28R-180 1974 and up   40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28R-200   28R-25001–7135109 40-84 APS164-01900 30-41 APS66-10600 4 APS105-00200
PA-28R-200   28R-7135110 and up 40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28R-200 1974 and up   40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-28-201T, PA-28R-201,201T; PA-28RT-201     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
PA-30   30-2–30-845 40-34 APS164-01000 30-23

APS66-06500

APS66-06200

2

2

APS177-00300
PA-30   30-845 and up 40-90 APS164-02201 30-23

APS66-06500

APS66-06200

2

2

APS177-00300
PA-31-300,310 Navajo   31-5–7300962 40-102 APS164-03506 30-68 APS66-03300 6 APS177-00400
PA-31-325 Navajo C/R   31-7300963 and up 40-102A APS164-04406 30-68A APS66-03300 6 APS177-00400
PA-31-350 Cheiftain   31-5001–7652075 40-102A APS164-04406 30-68A APS66-03300 6 APS177-00400
PA-31-350 Cheiftain   31-7652076 and up 40-130 APS164-07906 30-95A APS66-06600 8 APS177-01600
PA-31T Cheyenne I, IA, II   31-780015 and up 40-106 APS164-03906 30-106 APS66-06800 16 APS177-01600
PA-32-260   32-1 and up 40-90 APS164-02201 30-65 APS66-10500 4 APS105-00200
PA-32-260 1974 and up   40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32-260   Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-32-300   32-40000 and up 40-90 APS164-02201 30-65 APS66-10500 4 APS105-00200
PA-32-300 1974 and up   40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32-300   Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-32R-300     40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32R-300 1976 and up Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-32RT-300   7885002 and up 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32RT-300 1978 and up Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-32RT-300T   7887001 and up 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32RT-300T 1978 and up Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-32-301,301T; SP Series     40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-32-301,301T; SP Series   Heavy Duty Option 40-120C APS164-21600 30-83A APS66-06200 4 APS177-00300
PA-34-200 Seneca   7250001 and up 40-90 APS164-02201 30-65 APS66-10500 4 APS105-00200
PA-34-200 Seneca 1974 and up   40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-34-200 Seneca All Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-34-200T Seneca II   7570001 and up 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-34-200T Seneca II All Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-34-220T Seneca III     40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-34-220T Seneca III All Heavy Duty Option 40-120C APS164-21600 30-83A APS66-06200 4 APS177-00300
PA-36 Pawnee Brave     40-101 APS164-03006 30-67B APS66-10800 4 APS105-00200
PA-38-112 Tomahawk     40-78B APS164-01700 30-9B APS66-10600 2 APS105-00200
PA-38-112 Tomahawk Early 1980   40-59D APS164-06900 30-53A APS66-11200 2 APS105-00200
PA-39 Twin Comanche     40-90 APS164-02201 30-23

APS66-06500

APS66-06200

2

2

APS177-00300
PA-44-180 Seminole   7995001 and up 40-90A APS164-02300 30-65 APS66-10500 4 APS105-00200
PA-44-180 Seminole All Heavy Duty Option 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-44-180T Turbo Seminole   1 and up 40-120 APS164-21600 30-83 APS66-06200 4 APS177-00300
PA-46-310P     40-120C APS164-21600 30-83A APS66-06200 4 APS177-00300
PA-46-350P     40-120C APS164-21600 30-83A APS66-06200 4 APS177-00300
PA-46-500 Meridian Series     40-142 APS164-07800 30-83A APS66-06200 4 APS177-00300
T-1020     40-130 APS164-07906 30-95A APS66-06600 8 APS177-01600
T-1020   Heavy Duty Option 40-141 APS164-07700 30-123 APS66-06800 12 APS177-01600
Quest Aircraft Company
Kodiak 100 Series     40-179 APS164-22201 30-182 APS66-03300 8 APS177-00300
Kodiak 100 Series     40-179 APS164-22201 30-182 APS66-15300*** 8 APS177-00300
Kodiak 100 Series     40-179 APS164-22201 30-182A APS66-15300*** 8 APS177-00300
RFB Rhein-Flugzeugbau GmbH
RFB 400/600 Fantrainer     40-96E APS164-02504 30-61E APS66-10500 4 APS105-00200
Saab-Scania
MF1-15, MF1-17, Supporter AC, Mushshak     40-97D APS164-02601 30-63D APS66-10500 2 APS105-00200
Sadler Aircraft
A-22 Lasa, 18-100OPV     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
Schaefer Aircraft Modifications
PA-31T Comanchero 750     40-106 APS164-03906 30-106 APS66-06800 16 APS177-01600
PA-31-350 Comanchero 500     40-195 APS164-21900 30-158 APS66-06800 16 APS177-01600
Schleicher
ASK 21, ASW 20,22,23 Sailplane     40-78B APS164-01700 30-9 APS66-10600 2 APS105-00200
Schweizer
I-36 Glider     40-78 APS164-01700 30-9 APS66-10600 2 APS105-00200
Siai Marchetti
SF.205     40-97E APS164-02601 30-63M APS66-10600 2 APS105-00200
SF.260, SF.260C     40-3 **159-00200 30-13 APS66-10500 2 APS105-00200
SF.260SW     40-90A APS164-02300 30-65A APS66-10500 4 APS105-00200
S.211     40-205 N/A 30-165 APS66-10800 N/A APS105-00200
SF.600TP     40-75G APS164-01501 30-52P APS66-10500 4 APS105-00200
Slingsby Aviation
T67C, T67M, 200 Firefly     40-86B APS164-02000 30-55 APS66-10500 2 APS105-00200
T-3A, TR67     40-407 APS164-24400 30-236 APS66-10500 2 APS105-00200
Socata
100, 110, 125, 150, 180 Series, 110ST Calopin     40-97D APS164-02601 30-63J APS66-10500 2 APS105-00200
160ST Garnement, 180T Galrien, 180GT Gailaard     40-97D APS164-02601 30-63J APS66-10500 2 APS105-00200
220, 235C,G,E; 235CA Gaucho     40-84 APS164-01900 30-41B APS66-10600 4 APS105-00200
235G Guerrier, TB20, 21 Trinidad     40-84 APS164-01900 30-41B APS66-10600 4 APS105-00200
TB20, 21 Trinidad     40-90B APS164-01900 30-41B APS66-10600 4 APS105-00200
TB9 Tampica, TB10 Tobago, TB200     40-97E APS164-02601 30-63J APS66-10500 2 APS105-00200
TB30 Epsilon     40-90B APS164-02201 30-23B

APS66-06500

APS66-06200

2

2

APS177-00300
Sportavia
RF6C/RS180 Sportsman     40-86A APS164-02000 30-55B APS66-10500 2 APS105-00200
Stol Aircraft
UC-1 Twin Bee     40-74 APS164-00700 30-51A APS66-10600 4 APS105-00200
Swearingen Aircraft
SX300     40-151 APS164-08500 30-133 APS66-10500 2 APS105-00200
Taylorcraft
F-19 Sportsman 100     40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
F-21, F-21A Trainer/Sport     40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
F-22     40-86 APS164-02000 30-55 APS66-10500 2 APS105-00200
Univair
A2, A2A Alon     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
M10 Mooney Cadet     40-97A APS164-02601 30-63A APS66-10500 2 APS105-00200
J-3, PA-11,12,14,16,18,20     40-60 APS164-06700 30-60 APS66-10600 4 APS105-00200
PA-18, PA-20, PA-22     40-84 APS164-01900 30-41 APS66-10600 4 APS105-00200
Stinson 108, 108-1,2,3,5     40-28 APS164-00500 30-18 APS66-10600 2 APS105-00200
Valmet
L-70 Militrainer     40-75S **164-04800 30-52K APS66-10500 4 APS105-00200
L-90 TP Redigo     40-142 APS164-07800 30-127 APS66-06200 4 APS177-00300
Varga
2150A/2180 Kachina     40-97E APS164-02601 30-63E APS66-10500 2 APS105-00200
Waco
Meteor, Minerva, Vela     40-97a APS164-02601 30-63A APS66-10500 2 APS105-00200
Weatherly Aviation
201A, 201B, 201C, 620     40-101 APS164-03006 30-67D APS66-10800 2 APS105-00200
620A, 620B, 620TP   1520–1584 40-101 APS164-03006 30-89B APS66-10800 2 APS105-00200
620B   1585 and up 40-101E APS164-03006 30-89B APS66-10800 2 APS105-00200
Wing Aircraft
D-1 Derringer     40-84 APS164-01900 30-41B APS66-10600 4 APS105-00200
Wipaire Floats (Note: Float model numbers are listed)
2100, 2350     40-78A APS164-01700 30-9C APS66-10600 2 APS105-00200
3700, 3730, 3800, 3900, 4000     40-87J APS164-01700 30-9C APS66-10600 2 APS105-00200
3000, 3450     40-418 APS164-24500 30-241 APS66-10500 4 APS105-00200
6000, 6100, 7000, 8000, 8750     40-418B APS164-24500 30-241 APS66-10500 4 APS105-00200
10000, 13000     40-101, 40-101D APS164-03006 30-67C APS66-10800 4 APS105-00200
WTA
PA-18-150, PA-18A-150     40-60 APS164-06700 30-60 APS66-10600 4 APS105-00200

*PMA Pending

**OEM Only

*** APS has developed a metallic lining, APS66-15300, for the 30-182 and 30-182A brake assemblies used on the Cessna 208 Series and the Kodiak 100 aircraft. These FAA/PMA-approved linings are newly engineered and have an increased life expectancy of more than 25%. These linings must be installed in COMPLETE SETS due to the increased thickness of the friction material. After installing, make sure to follow the published break-in procedure for the APS metallic linings.

<<<<<<< HEAD ======= >>>>>>> dev
