Airpart Supply are an approved distributor and stockist for Plane Power alternators.

Plane-Power lightweight alternators and voltage regulators are aimed at three segments of the market: experimental/kit-built aircraft, generator-to-alternator STC conversions and PMA replacement units covering a broad range of the market.

Plane-Power alternators are the product of years of research, development and intensive testing. Each component has been engineered, developed, tested and re-tested exclusively for use in general aviation aircraft. As a result of these efforts, Plane Power alternators offer significant improvements over legacy aircraft alternator offerings including:

  • Generates substantially higher power at lower engine RPM
  • Generates significantly less heat while producing rated power
  • Generates rated power at typical aircraft cruise RPM
  • Vastly improved balancing which drastically reduces bracket failure
  • Greater reliability significantly increased service life
  • Weighs up to four pounds less

Plane-Power alternators are FAA PMA certified to replace the vast majority of popular general aviation alternators. Plane-Power also manufactures an alternator kit for experimental aircraft applications that comes complete with required brackets, spacers, internal cooling, voltage regulation (choice of internal or external), and over-voltage protection. Plane-Power alternators are warrantied for 2-years against component failures



Please see below table for application data. Click the relevant part number for pricing and availability. Alternatively, you can type the part number of your current alternator into the search box provided above, and if there is a Plane Power option it will show as an alternative in the part detail screen.

Part Application Voltage Amps Bracket
AL12-70 Engine series 320, 360, 540, 720 12v 70 amp or less Lycoming alternators 12 70 Included
AL12-C60 Piper: PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-180, PA-28-235, PA-28R-180, PA-28R-200, PA-32-260, PA-32-300 PA-28-140, PA-28-151, PA-28-161, PA-28-180, PA-28-235, PA-28R-200, PA-32-300 PA-28-151, PA-28-161, PA-28-181, PA-28-236, PA-28R-201, PA-28RT-201, PA-32-300, PA-32RT-300, PA-32RT-300T 12 60 Included
AL12-F60 Beechcraft: 19A, B19, M19A, 23, A23-19, A23-24, B23, C23, A24, A24R, B24R, C24R CESSNA 177, 177A, 177B, 172I, 172K, 172L, 172M, 172N, 172P, 177RG Grumman: AA-5, AA-5A, AA-5B, AG-5B, GA-7 12 60 Included
AL12-F60C CESSNA (OEM 611501-0101) P206A, P206B, P206C, P206D, P206E, U206, U206A, U206B, U206C,U206D, U206E, TP206A, TP206B, TP206C, TP206D, TP206E, TU206B,TU206C, TU206E, 207, T207, 210B, 210C, 210D, 210E, 210F, T210F,T210G, T210H, T210J CESSNA (OEM 611501-0102) 180H, 180J, 180K, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, 185E,A185E, A185F, 188, P206C, U206C, U206D, U206E, U206F, U206G,TP206C, TU206B, TU206C, TU206E, TU206F, TU206G, 207, T207 CESSNA (OEM 0750217-1) 180H, 182G, 182H, 185D, 210E CESSNA (OEM 15702136) 188, A188, 210G, 210H 12 60 NOT Included
AL12-P70 Lycoming: Engine series 235, 320, 360, 540, 720 12v 70 amp or less Lycoming alternators 12 70 NOT Included
AL24-70 Engine series 320, 360, 540, 720 24v 70 amp or less Lycoming alternators 24 70 Included
AL24-F60 Cessna 152, A152, 172M, 172N, 172P, 172RG, 177RG, R182, TR182 24 60 Included
AL24-F60C CESSNA (OEM C611503-0102) 180J, 180K, 182P, 182Q, 182R, T182, U206E, U206F, U206G, TU206E, TU206F, TU206G, 207, T207, 210K, 210L, 210M, 210N, 210R, P210N, P210R, T210K, T210L, T210M, T210N, T210R CESSNA (OEM 1570213-7) 188, 188A, 188B, A188, A188A, A188B 24 60 NOT Included
AL24-FS60 24/28 volt, 70 amp*, alternator replaces 24/28V Ford, 60 amp alternator in Cessna aircraft with Serpentine Belt Driven Lycoming engines. *Aircraft electrical system will be limited by existing wiring and output breaker not to exceed 60 amps. The Plane-Power alternator can produce all 70 amps if proper size wiring and circuit breaker is installed and approved. 24 60 -
AL24-P70 Lycoming: Engine series 235, 320, 360, 540, 720 24v 70 amp or less Lycoming alternators 24 70 NOT Included
C28-150 The C28-150 is PMA/FAA eligible on most Continental 520 and 550 Series engines with front mounted gear driven alternators. This spectacular alternator in addition to providing a continuous 150A at cruise RPM will deliver 60A at 1,000 RPM and weighing only 12.8 lbs! Also available without debris shield sold as model C28-150S. 28 150 -



You can also use the below links which will take you to the Plane Power alternator website. These links will open in a new tab to allow you to use the search functionality of this website.

APPLICATION GUIDE (ALTERNATOR ONLY)

PMA CERTIFIED ALTERNATOR KITS
These are complete kits which include everything you need to replace your current alternator using the existing belt and brackets.  Where required, the kit will also include brackets, spacers and hardware.

EXPERIMENTAL ALTERNATOR KITS

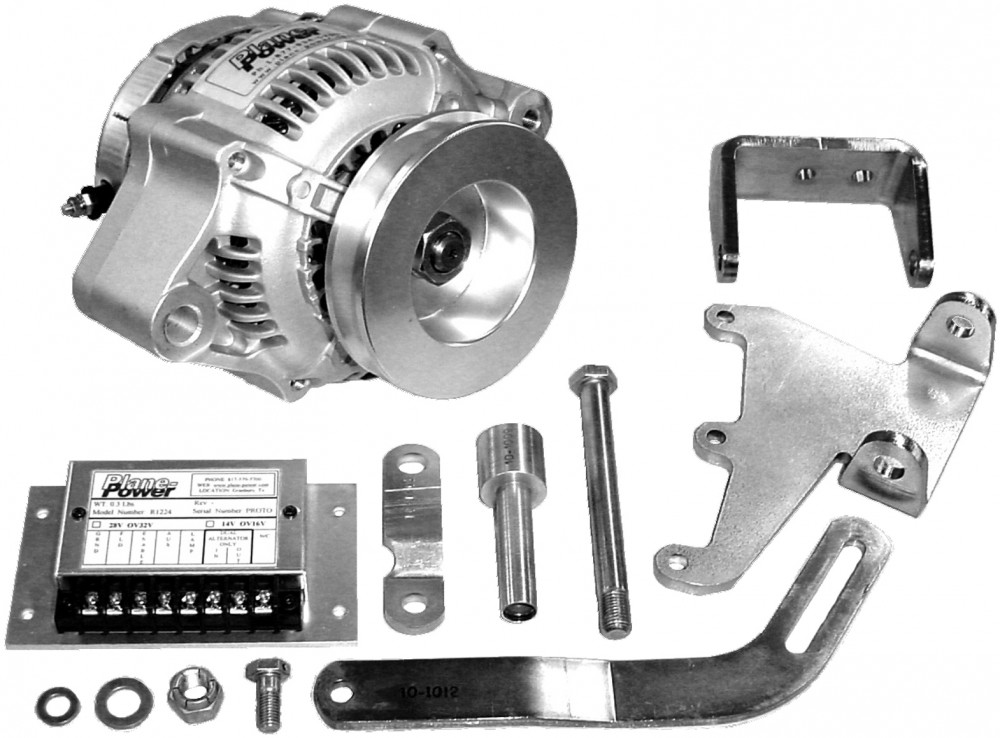

These are complete kits which include everything you need to add an alternator to your experimental aircraft engine including not only the alternator, but also all new brackets, spacers, mounting hardware and belt.

PMA CERTIFIED VOLTAGE REGULATORS
PMA certified solid-state Voltage Regulators with over-voltage protection, field short (over current) protection, reverse battery protection, precision load sharing and support either 14 or 28 volt applications with the simple change of two jumpers.

STC CERTIFIED GENERATOR TO ALTERNATOR CONVERSION KITS
These are complete kits which include what you need to replace an existing generator including not only the alternator, but also all new brackets, spacers, and mounting hardware as shown
STC CERTIFIED GEAR DRIVEN CONVERSION KIT
