Airpart Supply Ltd are an Authorised Distributor & Stockist for the Lycoming EIS

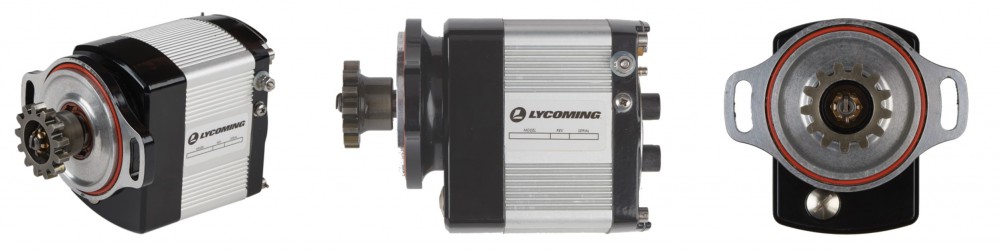

LYCOMING EIS
Lycoming's EIS meets the ever-growing performance requirements of modern-day aircraft design, including less maintenance, lower weight, and more spark control than a traditional magneto.
- The Lycoming EIS unit is a Lycoming proprietary design; it is engineered, tested and certified at the engine type certificate level
- Drop-in capable replacement for magnetos
- Service Instruction SI1070 is valid for certified engines, regardless of EIS installation, so there are no restrictions on fuel type (other than what is approved by engine model in SI1070).
- There are no maintenance intervals or inspections required, and the EIS unit matches the engine recommended TBO
- The Lycoming EIS does not require an STC for single installation
- The EIS eliminates the 500-hour inspection cost and, in single, fixed-timing installation allows for easier starting and smoother idle and better cold-start performance
Warranty: If an EIS unit is sold on a factory exchange engine, the unit carries the engine warranty. That is 6-24 months, depending on the condition of the engine from experimental to new. EIS ignition units installed as replacement parts are warranted against defects in material and workmanship for a period of either 24 months or the recommended TBO, whichever occurs first
Support Documents:
- Service Instruction SI1443R; approved EIS part numbers per engine model
- Service Instruction SI1569A; technical and installation details
Once you have located the apprived replacement EIS magneto (using Service Instruction SI1443R) - select the required part number from the table below for pricing and availability:
| Lycoming Part Number | Description | LED Code (S=Short Blink L=Long Blink) |
| 66K4A3SN-01 | 4 Cyl, Plain Drive, 20 Degree, Fixed Timing (Lyc Eis) | L-L-L-L |
| 66K4A3SN-02 | 4 Cyl, Plain Drive, 25 Degree, Fixed Timing (Lyc Eis) | L-L-L-S |
| 66K4F3SN-01 | 4 Cyl, Impulse Drive, 20 Degree, Fixed Timing (Lyc Eis) | L-L-L-L |
| 66K4F3SN-02 | 4 Cyl, Impulse Drive, 25 Degree, Fixed Timing (Lyc Eis) | L-L-L-S |
| 66K6D3SN-01 | 6 Cyl, 20 Degree, Fixed Timing (Lyc Eis) | L-L-L-L |
| 66K6D3SN-02 | 6 Cyl, 25 Degree, Fixed Timing (Lyc Eis) | L-L-L-S |
| 66K6D3SN-03 | 6 Cyl, 23 Degree, Fixed Timing (Lyc Eis) | L-L-S-L |
| 66K6D3SN-04 | 6 Cyl, 20 Degree, Fixed Timing, Rev Rot (Lyc Eis) | S-L-L-L |
More information can be found on the Lycoming Engines website here: https://www.lycoming.com/eis
