Engine Baffle





Their dedication to the product has allowed Brown Aircraft Supply to be the Manufacturer of the Best Silicone Engine Baffle on the market!

Heavy Duty Textured Finish Silicone Engine Baffle

The T-8071 & T-95182 have become a signature product of Brown Aircraft Supply and the standard when it comes to engine baffle material for the general aviation market. For many years we have manufactured this product and supplied it all around the world. This material is constructed of a heavy woven fiberglass mat and then impregnated & coated with a silicone coating. It manufactured to a heavy 1/8” thickness, with the signature textured finish of the Brown Aircraft Supply Engine baffle. It is available in sheets or rolls.





The T-8071 is a Heavy Duty Silicone based engine Baffle Material. It is constructed using a heavy weight Fiberglass reinforcement matt which gives it a much stronger resiliency and durability over the smooth finish material. The Fiberglass Reinforcement assist it in product performance by allowing it to not easily tear. The Silicone Base material has a temperature range of -65 to 550 degrees Fahrenheit. It is manufactured to a 1/8"" thickness x 18" wide by 40" wide

Part Number Roll/Sheet Size Colour
T-8071-2 Roll 1/8” x 2” x 9Ft Black
T-8071-3 Roll 1/8” x 3” x 9Ft Black
T-8071-18 Sheet 1/8” x 18” x 40” Black
T-8071-36 Sheet 1/8” x 36” x 40” Black



The T-95182 is a Heavy Duty Silicone based engine Baffle Material. It is constructed using a heavy weight Fiberglass reinforcement matt which gives it a much stronger resiliency and durability over the smooth finish material. The Fiberglass Reinforcement assist it in product performance by allowing it to not easily tear. The Silicone Base material has a temperature range of -65 to 550 degrees Fahrenheit. It is manufactured to a 1/8"" thickness x 18" wide by 40" wide

Part Number Roll/Sheet Size Colour
T-95182-2 Roll 1/8” x 2” x 9Ft Red/Orange
T-95182-3 Roll 1/8” x 3” x 9Ft Red/Orange
T-95182-18 Sheet 1/8” x 18” x 40” Red/Orange
T-95182-36 Sheet 1/8” x 36” x 40” Red/Orange

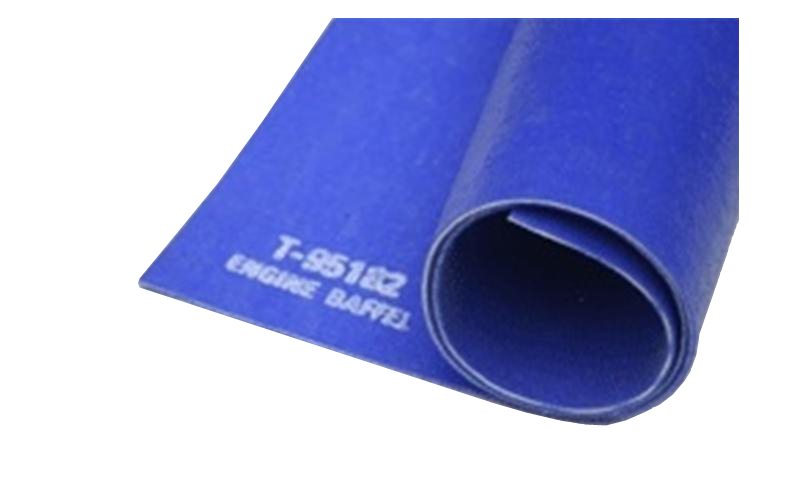

The T-95182-BL is a Heavy Duty Silicone based engine Baffle Material. It is constructed using a heavy weight Fiberglass reinforcement matt which gives it a much stronger resiliency and durability over the smooth finish material. The Fiberglass Reinforcement assist it in product performance by allowing it to not easily tear. The Silicone Base material has a temperature range of -65 to 550 degrees Fahrenheit. It is manufactured to a 1/8"" thickness x 18" wide by 40" wide

Part Number Roll/Sheet Size Colour
T-95182-BL-2 Roll 1/8” x 2” x 9Ft Blue
T-95182-BL-3 Roll 1/8” x 3” x 9Ft Blue
T-95182-BL-18 Sheet 1/8” x 18” x 40” Blue
T-95182-BL-36 Sheet 1/8” x 36” x 40” Blue

Smooth Finish Silicone Engine Baffle

This material is manufactured to meet the AMS3320 spec. It is constructed of a very lightweight fiberglass reinforcement mat coated with a silicone material.

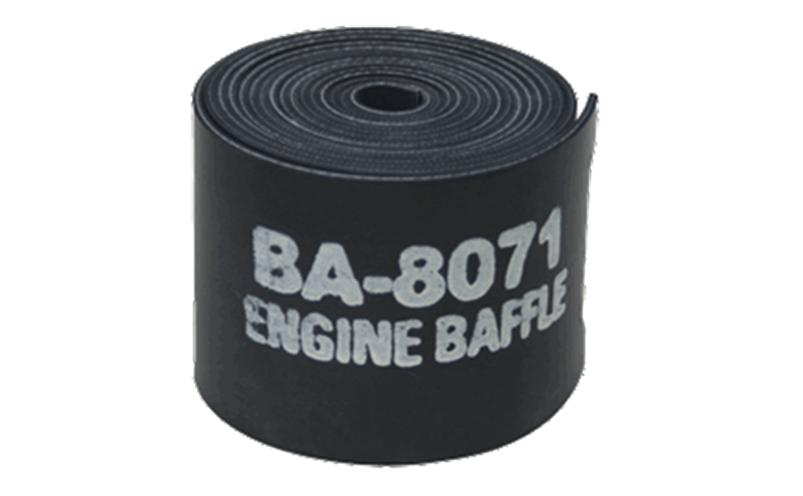

The BA-8071-1 is an aircraft fiberglass baffle material constructed of both fiberglass and silicone, offering a combination of low weight and superior engine protection. This black engine baffle meets the AMS 3320 spec to ensure the best engine protection possible. The BA-8071-1-3 silicone engine baffle has a temperature range of -65 to 500 degrees (F). Measuring 3/32" thickness x 3" wide by 9' long, the infusion of silicone into this aircraft fiberglass baffle ensures it is both sturdy and temperature resistant.

Part Number Roll/Sheet Size Colour
BA-8071-1-3 Roll 3/32” x 3” x 9Ft Black
BA-8071-1-2 Roll 3/32” x 2” x 9Ft Black
BA-8071-1-36 Sheet 3/32” x 36” x 36” Black

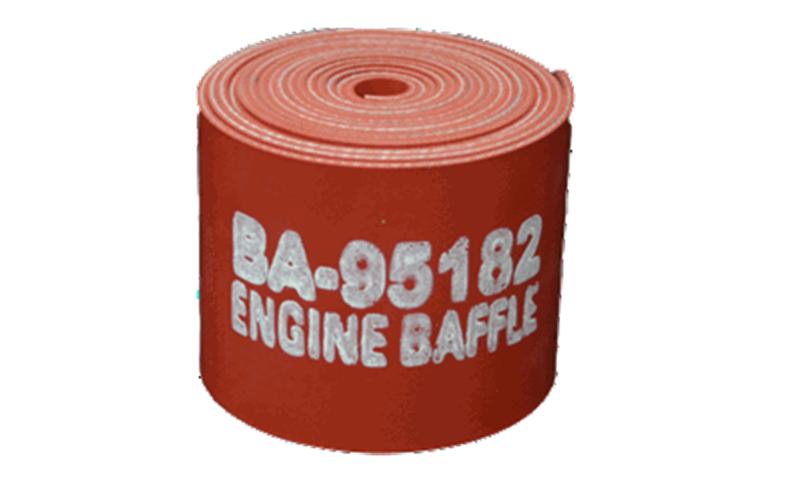

The BA-95182-1 is a silicone based engine Baffle Material that is manufactured to meets the AMS 3320 spec. It is a fiberglass reinforced material. The Fiberglass Reinforcement assist it in product performance by allowing it to not easily tear. The Silicone Base material has a temperature range of -65 to 550 degrees Fahrenheit. It is manufactured to a 3/32" thickness x 3" wide by 9' long

Part Number Roll/Sheet Size Colour
BA-95182-1-3 Roll 3/32” x 3” x 9Ft Red
BA-95182-1-2 Roll 3/32” x 2” x 9Ft Red
BA-95182-2-36 Sheet 1/8” x 36” x 36” Red
BA-95182-1-36 Sheet 3/32” x 36” x 36” Red

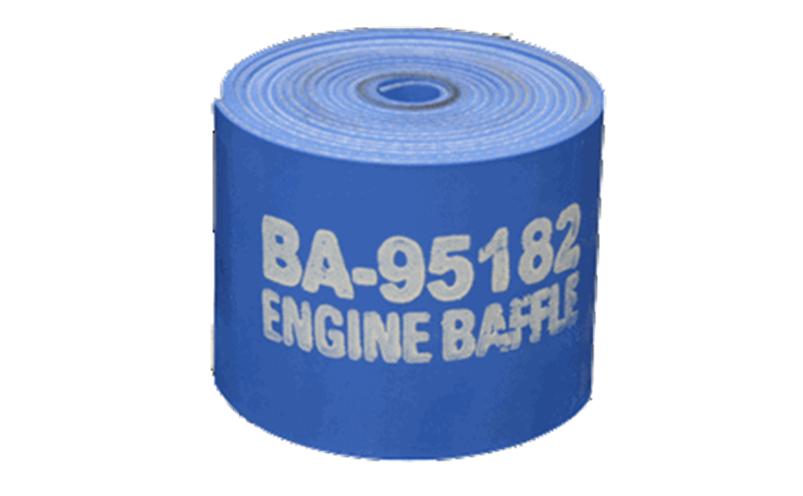

The BA-95182-BL is a silicone based engine Baffle Material that is manufactured to meets the AMS 3320 spec. It is a fiberglass reinforced material. The Fiberglass Reinforcement assist it in product performance by allowing it to not easily tear. The Silicone Base material has a temperature range of -65 to 550 degrees Fahrenheit. It is manufactured to a 3/32" thickness x 3" wide by 9' long

Part Number Roll/Sheet Size Colour
BA-95182-1-3BL Roll 3/32” x 3” x 9Ft Blue
BA-95182-1-2BL Roll 3/32” x 2” x 9Ft Blue
BA-95182-1-36BL Sheet 3/32” x 36” x 36” Blue

Smooth Finish Neoprene Engine Baffle

This material is manufactured to meet the MIL-R-6866E spec. It is constructed of two polyester fabric layers coated with a Neoprene Rubber Material.

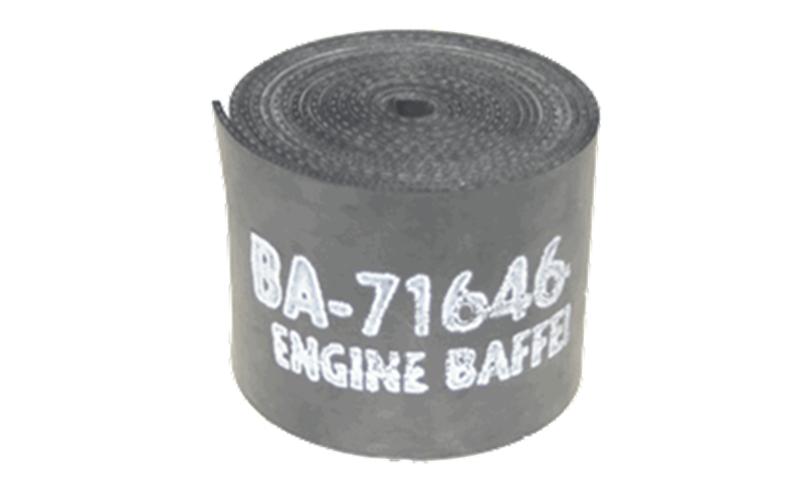

The BA-71646 material is polyester fiber reinforcement neoprene material. The neoprene material offers a temp. range -20 to 212 F. The Finish of the neoprene material is a smooth plate finish. This is a 1/16" thick x 3" wide x 9' long.

Part Number Roll/Sheet Size Colour
BA-71646-1-3 Roll 1/16” x 3” x 9Ft Black
BA-71646-2-3 Roll 1/8” x 3” x 9Ft Black
BA-71646-3/32-3 Roll 3/32” x 3” x 9Ft Black
BA-71646-1-18 Sheet 1/16” x 18” x 40” Black
BA-71646-1-36 Sheet 1/16” x 36” x 40” Black
BA-71646-2-18 Sheet 1/8” x 18” x 40” Black
BA-71646-2-36 Sheet 1/8” x 18” x 40” Black

Engine Baffle Fasteners

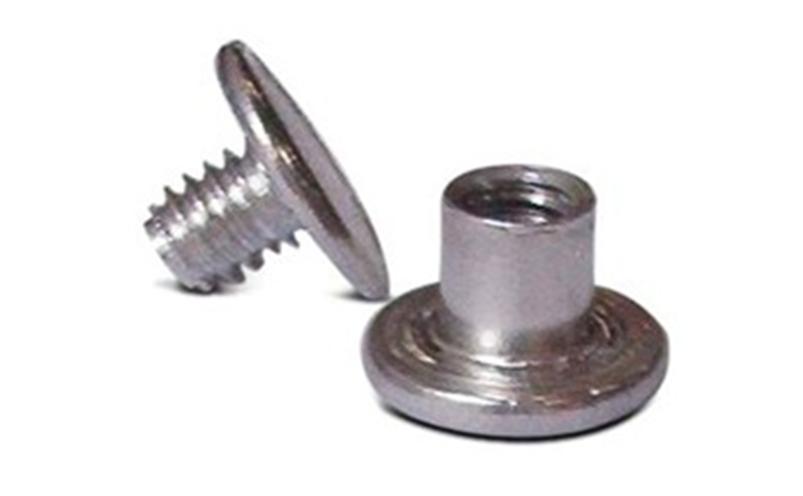

The T-3700-3-PK is a two piece soft aluminum fastener used for attaching the flexibile engine baffle to the aluminum baffle componets. Each package consist of 13 total fasteners. They have a grip length of 3/16" to 5/16" and the O.D. of the stud post is 3/16".

Part Number Description
T-3700-3-PK Engine Baffle Fastener (2 Piece) - 13 per pack
