RSA Servo Applications
This chart is for reference only. For specific application information, or if there is any doubt about an application, refer to the aircraft equipment list or contact the engine manufacturer.
The application should be verified by type certificate data, as many engine models may use more than one P/N servo in different airframe installations.
|
RSA-5AB1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524199 |
74295 | HIO-360-A | |
| 2524262 | 76703 | HIO-360-B | |
| 2524378 | LW-10020 | HIO-360-B | |
| 2524712 | LW-15971 | HIO-360-C, E | |
| 2524858 | LW-18111 | HIO-360-F | |
| 2576501 | 61J21507 | AEIO-540-D | |
|
RSA-5AD1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524054 |
73937 |
IO-360-A, B; IO-540-A, C, D; AIO-360-B |
|
| 2524145 | 74534 | IO-320-B | |
| 2524147 | 74556 | IO-360-B; HIO-360-B | |
| 2524189 | 74847 | IO-360-C, D; LIO-360-C | |
| 2524213 | 75176 | IO-540-C | |
| 2524242 | 76082 | IO-320-C, F | |
| 2524291 | 76817 | IO-360-B; AEIO-360-B | |
| 2524297 | 76504 | IO-360-B | |
| 2524307 | 77260 | IO-320-D, E | |
| 2524328 | 77543 | IO-320-B; LIO-320-B | |
| 2524335 | 77597 | IO-320-C; LIO-320-C | |
| 2524359 | 78318 | TIO-540-C | |
| 2524450 | LW-10409 | IO-360-C; LIO-360-C | |
| 2524459 | LW-10622 | IO-540-N, R; AEIO-540-D | |
| 2524550 | LW-11848 | IO-360-A | |
| 2524575 | LW-12298 | TIO-360-A, B; AEIO-360-A, B | |
| 2524590 | LW-12586 | IO-360-C; LIO-360-C | |
| 2524592 | LW-12643 | IO-360-C | |
| 2524634 | LW-11792 | IGO-480 | |
| 2524640 | LW-13570 | IO-320-E | |
| 2524673 | LW-14184 | IO-540-T | |
| 2524682 | LW-14382 | IO-360-B | |
| 2524723 | LW-14677 | AEIO-320-E | |
| 2524752 | LW-15664 | IO-320; AEIO-360-H | |
| 2524840 | LW-16877 | IO-540-C | |
| 2524939 | LW-18943 | TIO-360-C | |
| 2524979 | LW-19739 | TIO-540-AB | |
| 2549002 | 61J19503 | TIO-540-AA | |
| 2549050 | 61J21008 | TIO-540-AF | |
|
2576522 |
61J21970 |
IO-320-B, C, D, E, F; AIO-320; AEIO-320-D, E |
|
| 2576524 | 61J21971 | IO-360-B, F, L; AEIO-360-H | |
| 2576536 | 61J22088 | IO-360-B, F, L; AEIO-360-H | |
|
2576544 |
61J22300 |
IO-540-C, D, J, N, R, T, V, W, AB; AEIO-540-D |
|
|
RSA-7AA1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524347 |
77885 | HIO-360-D | |
|
RSA-7DA1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524624 |
646506-2 (TCM) |
TSIO-520-WB, LB |
|
|
RSA-10AD1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524030 |
74440 | IO-720-A | |
| 2524152 | 75119 | 1O-720-A, D | |
| 2524163 | 75311 | TIO-540-A | |
| 2524175 | 74700 | IO-720-A, C, D | |
| 2524255 | 75969 | IVO-540-A | |
| 2524311 | 77293 | IO-540-M | |
| 2524318 | 77442 | IO-540-L | |
| 2524757 | LW-15671 | IO-720-B | |
|
RSA-10ED1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524273 |
75567 | IO-540-G, K | |
| 2524298 | 77003 | IO-540-G | |
| 2524422 | 79034 | IO-540-K | |
| 2524491 | LW-11218 | IO-540-G, K, S | |
| 2524500 | LW-11507 | L/TIO-540-F, J, N | |
| 2524556 | LW-11924 | IO-540-K | |
| 2524582 | LW-12396 | IO-720-B | |
| 2524693 | LW-14464 | IO-540-S | |
| 2524846 | LW-16954 | IO-540-AA | |
| 2524859 | LW-18024 | IO-540-G, K, S, U | |
| 2524880 | LW-18157 | TIO-540-U | |
| 2549038 | 61M19888 | TIO-540-AE | |
| 2576546 | 61M22620 | IO-540-AC | |
| 2576562 | 61M22606 | TIO-540-AJ | |
|
RSA-10ED2® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524791 |
LW-15987 |
TIO-540-R |
|
|
RSA-10DB1® |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524275 |
76476 |
TIO-540-E |
|
| 2524649 | LW-13527 | TIO-540-R | |
| 2524855 | LW-18066 | AEIO-540-L | |
|
RSA-10DB2 |
|||
|
PRECISION PART NO. |
ENG. MFR. PART NO. |
ENGINE |
|
|
2524501 |
LW-11508 |
TIGO-541-C, E |
|
|
|

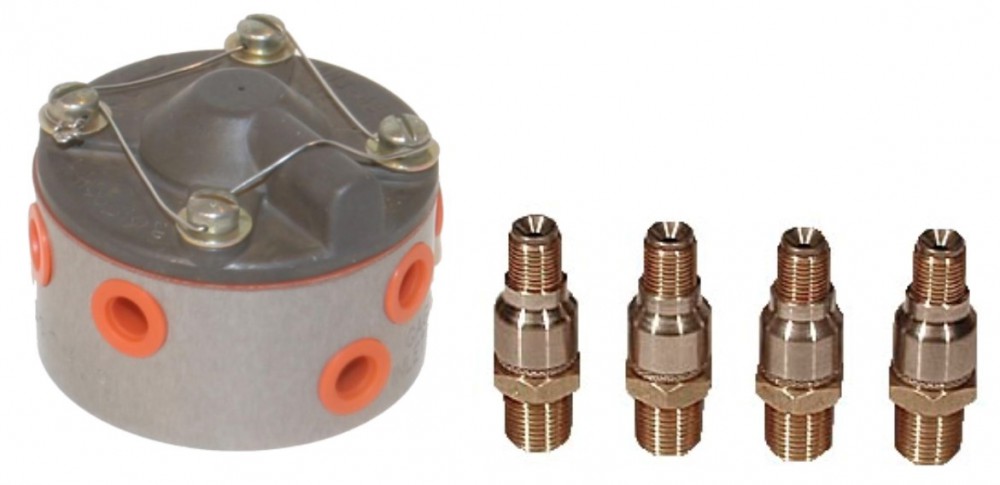

Flow Divider/Nozzle Kit Application Chart for Lycoming EnginesFlow Divider / Nozzle Kits for your Lycoming engine! Precision Airmotive introduced these kits as a means of saving their customers money while providing access to quality parts backed by the best product support in the industry. The benefits are readily apparent!
|
This chart is for reference only. For specific application information, or if there is any doubt about an application, refer to the aircraft equipment list or contact the engine manufacturer.
Component part numbers and quantities show the flow divider on top, the nozzles on the bottom
| KIT PART NO | COMPONENT PART NO (PRECISION) | COMPONENT PART NO (LYCOMING) | QTY | ENGINE APPLICATION(S) |
| 2576615 | 2524232-2 | LW-2524232-2 | 1 | IO-360, IO-320 |
| 2524864-2 | LW-18265 | 4 | ||
| 2576616 | 2524232-2 | LW-2524232-2 | 1 | IO-540 |
| 2524864-2 | LW-18265 | 6 | ||
| 2576617 | 2524232-2 | LW-2524232-2 | 1 | TIO-540 |
| 2524917-1 | LW-18854 | 6 | ||
| 2576618 | 2524232-2 | LW-2524232-2 | 1 | TIO-540 |
| 2524923-1 | LW-18853 | 6 | ||
| 2576620 | 2524232-2 | LW-2524232-2 | 1 | TIO-540 |
| 2524926-1 | LW-18855 | 6 | ||
| 2576621 | 2524610-2 | LW-2524610-2 | 1 | IO-720 |
| 2524864-2 | LW-18265 | 8 | ||
| 2576622 | 2576564-1 | LW-2576564 | 1 | IO-360, IO-320 |
| 2524864-2 | LW-18265 | 4 | ||
| 2576635 | 2576564-1 | LW-2576564 | 1 | IO-540 (Cessna 182) |
| 2524864-2 | LW-18265 | 6 | ||
| 2576636 | 2576526-1 | LW-2576526-1 | 1 | IO-540 (Robinson R44) |
| 2524864-2 | LW-18265 | 6 |
